Fluke SMFT-1000
Fluke SMFT-1000

Fluke SMFT-1000

0 Review(s)
SKU: FLK-SMFT-1000

Ex VAT

Out stock

SKU: FLK-SMFT-1000

Summary of Fluke FLK-SMFT-1000

  1. All-in-one PV system test solution meeting IEC 62446-1 standards for Category 1 and Category 2 tests
  2. Open-circuit voltage (VOC) measurement at the PV module/string up to 1000 V DC
  3. Short-circuit (ISC) current measurement at the PV module/string up to 20 A DC
  4. On-location I-V curve results compares manufacturer I-V curve data to measured data on the analyzer screen, accurately measures modules with an efficiency of up to approximately 19%
  5. Compatible with Fluke TruTest™ data management software
Available: Out stock
Compare

Description

All-in-one test solution to verify PV system performance and safety, expedite client reporting.

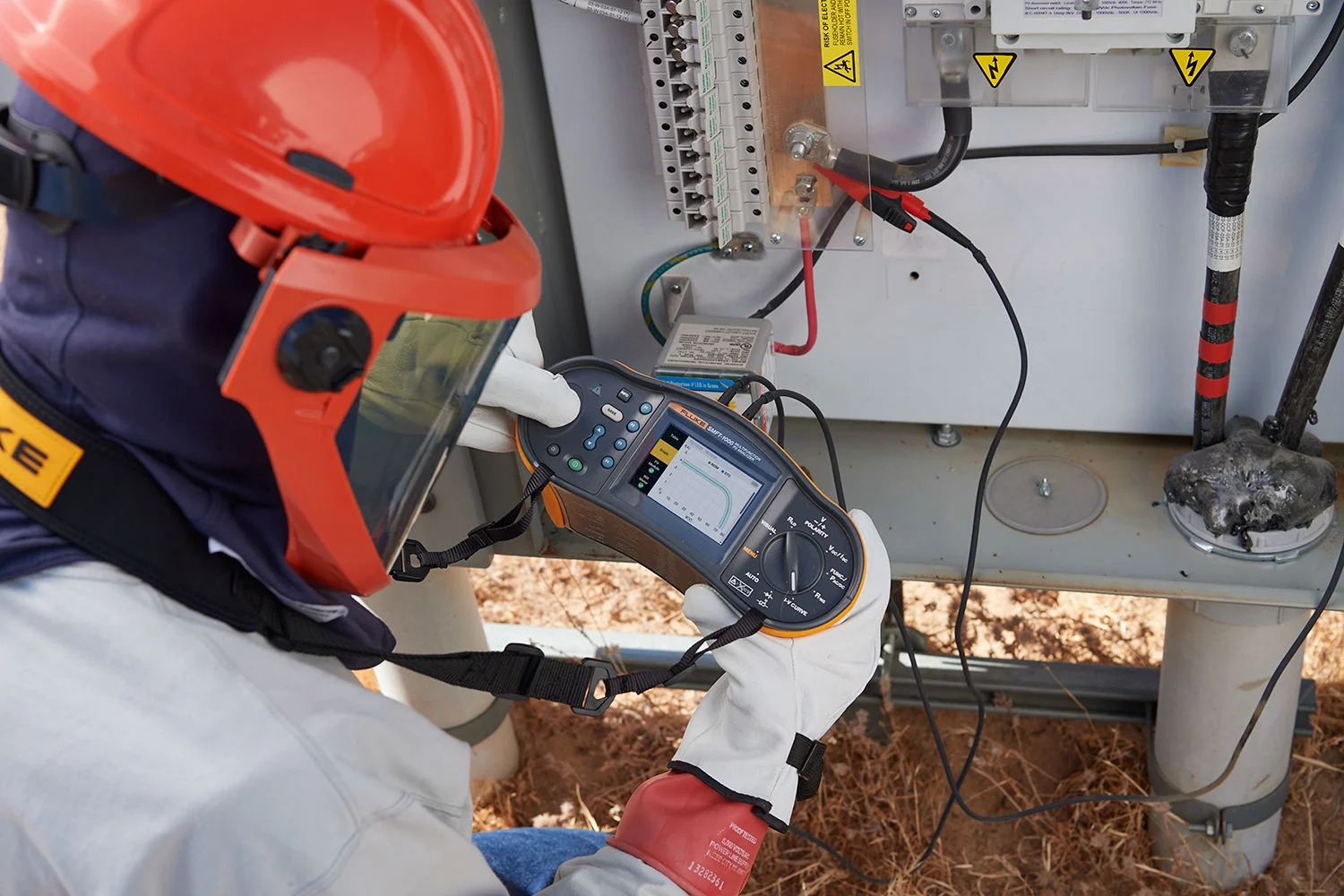

Test that PV systems are performing to their optimal power output as well as operating safely with the Fluke SMFT-1000 multifunction tester with I-V curve tracing.  Designed for PV professionals that provide installation, commissioning and maintenance services to systems that operate at 1000 V DC or under, the SMFT-1000 provides a complete PV testing solution that conforms to IEC 62446-1 standards. Through Fluke’s TruTest™ Software, measurement data from solar site installation and commissioning testing can be easily imported, organized and analyzed for effortless reporting without having to bring a laptop on-site.

Critical testing features for periodic inspection of PV systems

Full sequence safety testing – IEC 62446-1 Category 1:

  • Protective resistance earth (Rpe)
  • Voltage on open circuit (Voc)
  • Short circuit current (Isc)
  • Insulation resistance (Rins)
  • Polarity

ROI and system performance testing – IEC 62446-1 Category 2:

  • I-V Curve tracing and software analysis with TruTest
  • Irradiance, temperature, tilt, cardinal direction

What’s in the box:

  • Fluke SMFT-1000-BP Professional Tool Backpack
  • SMFT-1000 Multifunction PV Analyzer
    1. Carry Strap
    2. Fuse Pack
    3. Adapter Cable IRDA Optical-to-USB
    4. Zero Adapter
  • IRR2-BT Wireless Solar Irradiance Meter Pro
    1. 80PR-IRR External Temperature Probe
    2. Mounting Bracket for solar panel
    3. Carry Case
  • i100 AC/DC Current Clamp 100 A
    1. TPAK Magnet Set
  • TP1000 Test Probe with Remote Test Button
  • TL1000 Test Lead Set
  • TL1000-MC4 Test Lead Set
  • TL1000/30M Test Lead on Reel
  • Coupler set

Wireless Irradiance Meter: No leads required

To perform precise I-V curve measurements, real time irradiance and temperature data is needed. The included IRR2-BT irradiance meter wirelessly connects to the SMFT-1000 to communicate data in real time, providing the most accurate I-V curve measurements possible. If the wireless connection is interrupted for any reason, the IRR2-BT will continue recording data for up to 17 hours that can later be matched to tests taken with the SMFT-1000.

It’s a hassle to change the configuration of test leads constantly while doing different tests. With Fluke’s “Keep the Leads” system, less time is wasted on set-up, and less user errors occur while testing PV systems. Now you can get more testing done in the field in less time
